Veria Underfloor 150 Twin Conductor Heating Quickmat, 1800W

Veria Underfloor 150 Twin Conductor Heating Quickmat, 1800W - Image 2

Veria Underfloor 150 Twin Conductor Heating Quickmat, 1800W - Image 3

Veria Underfloor 150 Twin Conductor Heating Quickmat, 1800W

Original price was: £177.99.Current price is: £95.99.

SKU: ZGL5L 5703466206935 Categories: Central heating, Underfloor heating Tag: Veria

Enjoy top quality items for less
Streamlined service, designed for your convenience.
Top Quality Products
Free Shipping, No Compromise on Quality

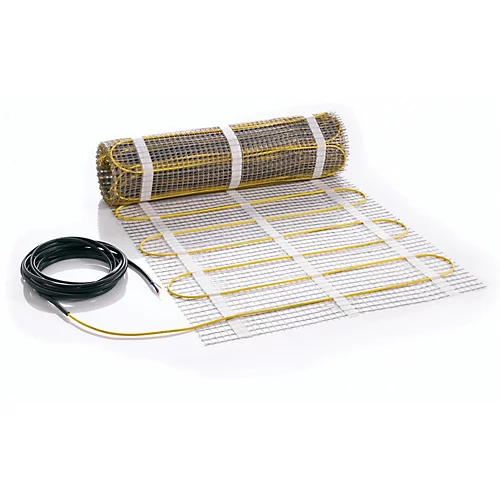

Quickmat double-core heating mat for installation directly under the floor without forming a thick cement screed, and is installed mainly under the tile in tile adhesive. The cable is equipped with a screen made of aluminium foil. If the cable is mechanically damaged, the built-in screen system will be automatically switched off – without any risk to humans or animals. The mat is a synthetic mesh to which the heating cable is attached. Implemented in the form of ready-made kits, a certain area, completely ready for installation.

Specifics:
Cable colour: Yellow
Cable type: Twin conductor
Conductor insulation: FEP
Deformation strength: 600 Nm
Max. temperature: 120°C
Outer cover material: PVDF
Output per m2: 100 W/m2 and 150 W/m2 at 230 V
Screen: 100% aluminium screen
Self-adhesive nylon net: Yes
Supply line: 1 x 2.3 m
Tensile strength: 120 Nm

Veria Quickmat can be used with the following thermostats:
Veria Control B35/45
Veria Control T45
Veria Control W35/45

Safety Warning: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Note that the yellow cable must not be cut under any circumstances.
The heating mat/cable must never be double-laid, overlapped or cross over itself.

Box Contains: 1x Veria Underfloor Twin Conductor Heating Quickmat

Guarantee – Statutory
Any room

Features and benefits

Easy installation: With just one supply line and the self-adhesive net, the Veria Quickmat twin conductor model is the market’s easiest product to install. No need to calculate the distance between the heating cables or worry about securing them to the floor; all you have to do is unroll the heating mat, press it down and secure it to the substrate, then grout over the heating cable with suitable and flexible grouting material.
A better indoor climate: The cable’s design, with its 100% protective aluminium screen, combined with twin conductor technology, means that both the electrical and electromagnetic emissions are very close to zero, which makes for a better indoor climate.
Top-notch safety: The heating cable is equipped with a fully protective aluminium screen, which is connected to the earth connection of your electrical installation. Should the cable break unexpectedly, the built-in screen connection will immediately shut down the system – without any risk to people or animals.
CE-marked in accordance with EN 60335-1 and 60335-2-96

Brand	Veria
Model name/number	189B0184
Product length	24000mm
Product width	500mm
Product thickness	3.5mm
IP rating	No IP rating
Coverage	12m²
Power voltage supply	230V
Control type	Thermostatic
Product code	5703466206935
